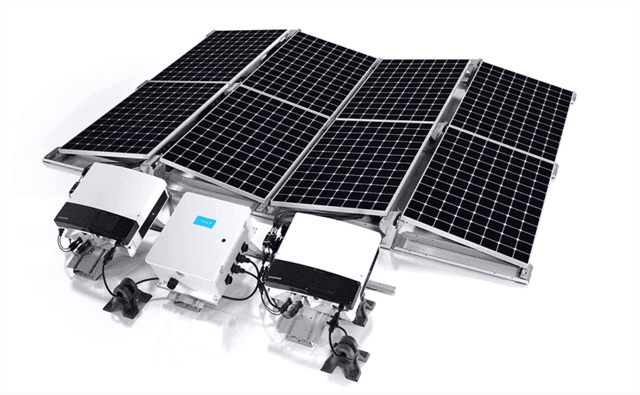

Solar Panel

A solar panel is a collection of solar cells. The solar panel converts the solar energy into electrical energy. The solar panel uses Ohmic material for interconnections as well as the external terminals. So the electrons created in the n-type material passes through the electrode to the wire connected to the battery. Through the battery, the electrons reach the p-type material. Here the electrons combine with the holes. So when the solar panel is connected to the battery, it behaves like another battery, and both the systems are in series just like two batteries connected serially.

The major components of a battery solar power system are...

• Charge Controller: Prevents the battery bank from overcharging by interrupting the flow of electricity from the PV panels when the battery bank is full.
• Battery Bank: A group of batteries wired together. The batteries are similar to car batteries, but designed specifically to endure the type of charging and discharging they'll need to handle in a solar power system.
• System Meter: Measures and displays your solar PV systems performance and status.
• Main DC Disconnect: A DC rated breaker between the batteries and the inverter. Allows the inverter to be quickly disconnected from the battery bank for service.
